Modal Parameter Estimation - SDOF
Overview

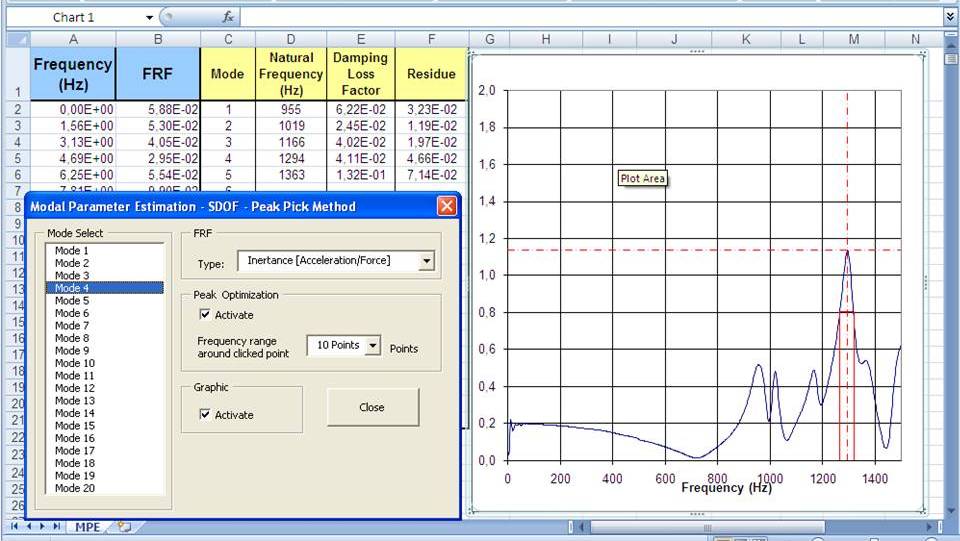

Estimating the modal parameters (Resonance frequency, damping and residue) using graphical "pick peak" method. Damping is estimated using the half power pass-band method. Residue is determined assuming a single degre of freedom model.
Download MPE_SDOF.xlsm (Excel 2007-2010)
